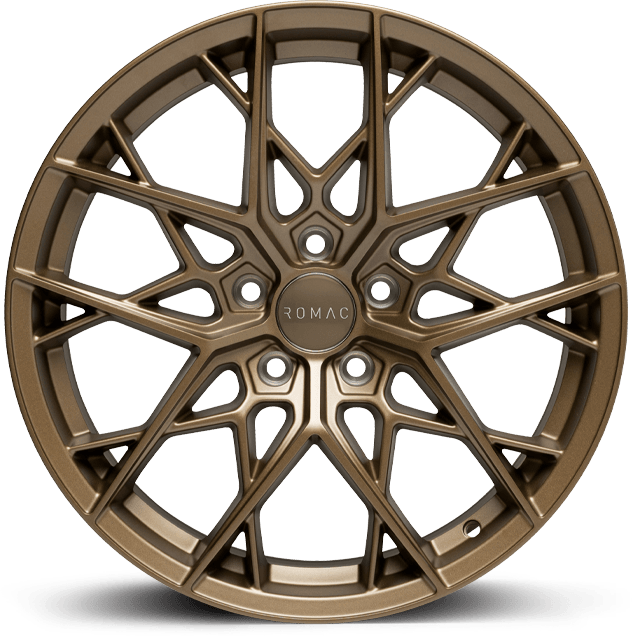

VORTEX
Flow Forming Technology
Powder Coated Polish
Premium Paint Finishes
Concave Wider Rear Applications
OE Centre Cap Fixings
Gloss Black
Gloss Black/Polish
Silver
Spec.
| WHEEL SIZE | WHEEL PCD | WHEEL OFFSET | CENTRE BORE | WEIGHT RATING | WHEEL WEIGHT |
| 8×18 | 5×108 | 45 | 73.1 | 725kg | 9.50kg |
| 8×18 | 5×112 | 35 | 73.1 | 725kg | 9.50kg |
| 8×18 | 5×112 | 45 | 73.1 | 725kg | 9.50kg |
| 8×18 | 5×114 | 42 | 73.1 | 725kg | 9.50kg |
| 8×18 | 5×120 | 34 | 72.6 | 725kg | 9.50kg |
| 8×18 | 5×120 | 45 | 72.6 | 725kg | 9.50kg |
| 8.5×18 | 5×112 | 35 | 73.1 | 725kg | 9.50kg |
| 8.5×18 | 5×112 | 45 | 73.1 | 725kg | 10.40kg |
| 8.5×18 | 5×120 | 37 | 72.6 | 725kg | 10.40kg |
| 8.5×18 | 5×120 | 44 | 72.6 | 725kg | 10.40kg |
| 8×19 | 5×112 | 28 | 73.1 | 800kg | 11.10kg |
| 8×19 | 5×112 | 45 | 73.1 | 800kg | 11.10kg |
| 8×19 | 5×120 | 33 | 72.6 | 800kg | 11.10kg |
| 8×19 | 5×108 | 42 | 73.1 | 800kg | 11.10kg |
| 8×19 | 5×114 | 40 | 73.1 | 800kg | 11.10kg |
| 9×19 | 5×120 | 37 | 72.6 | 800kg | 11.70kg |
| 9×19 | 5×112 | 40 | 73.1 | 800kg | 11.70kg |
| 8.5×20 | 5×114 | 38 | 73.1 | 1000kg | 13.00kg |
| 8.5×20 | 5×108 | 45 | 73.1 | 1000kg | 13.00kg |
| 8.5×20 | 5×112 | 26 | 66.6 | 1000kg | 13.00kg |
| 8.5×20 | 5×112 | 45 | 66.6 | 1000kg | 13.00kg |
| 8.5×20 | 5×120 | 38 | 72.6 | 1000kg | 13.00kg |
| 9.5×20 | 5×120 | 40 | 72.6 | 1000kg | 14.00kg |
| 9.5×20 | 5×112 | 37 | 66.6 | 1000kg | 14.00kg |
| 10×20 | 5×120 | 40 | 72.6 | 1000kg | 14.40kg |
| 9.5×22 | 5×120 | 40 | 72.6 | 1000kg | 15.70kg |
| 9.5×22 | 5×112 | 40 | 66.6 | 1000kg | 15.70kg |
| Sizes 8X18 8.5X18 8X19 9X19 8.5X20 9.5X20 10X20 9.5X22 | Colour Gloss Black/Polish, Gloss Black & Silver |
| Applications 5X100 5X108 5X112 5X114 5X120 | Weight Rating 690KG 725KG 1000kg |
| Wheel Weight 8X18- 9.50KG 8.5X18- 10.40KG 8X19- 11.10KG 9X19- 11.70KG 8.5X20- 13.00KG 9.5X20- 14.00KG 10X20- 14.00KG 9.5X22- 15.70KG |
 Our Products are manufactured in TUV Approved Factories |  Our Products also feature JWL & VIA Approval |
